Apple-Compliant MP4 Encapsulation with Chapter Markers and Subtitles via FFmpeg

Objective

Encode and mux assets for video files ensuring compatibility with iOS 26+ and macOS 26+ (Tahoe).

This includes:

  • Embedding subtitles in Apple’s tx3g format.
  • Incorporating chapter markers with both text labels and thumbnail images.

1. Chapter Metadata Specification

To ensure chapters are recognized, the metadata file must follow the FFMETADATA header format with timestamps in nanoseconds (or based on timebase).

;FFMETADATA1
major_brand=isom
minor_version=512
compatible_brands=isomdby1iso2mp41
encoder=Lavf62.3.100

[CHAPTER]
TIMEBASE=1/1000
START=0
END=150483
title=01. ハジメテノオト (Hajimete no Oto)

[CHAPTER]
TIMEBASE=1/1000
START=150483
END=325658
title=02. Project DIVA desu.

[CHAPTER]
TIMEBASE=1/1000
START=325658
END=503002
title=03. ワールドイズマイン (World is Mine)

... ...

2. The Unified Encapsulation

The following command maps all streams and enforces the creation of an independent chapter track required by the iOS/macOS TV App.

ffmpeg -fflags +genpts -i "video_input.mp4" -i "subs_input.srt" -i "chapters_metadata_input.txt" \
-map 0:v -map 0:a -map 1 \
-map_metadata 2 -map_chapters 2 \
-c:v copy -c:a copy \
-c:s mov_text -metadata:s:s:0 title="JP-CN Dual" -metadata:s:s:0 language=mul \
-movflags +faststart \
"output.mp4"

Key Parameter Breakdown:

  • -c:s mov_text: Converts SRT to Apple’s tx3g Timed Text format, the only subtitle format natively supported by the iOS MP4 container.

  • -map_chapters 2: Explicitly maps the third input (index 2, the metadata file containing chapter info) as the source for the global chapter table. QuickTime won’t show chapters unless this is specified.

  • -movflags +faststart: Relocates the moov atom to the beginning of the file, allowing “instant-play” via progressive downloading. Otherwise, the video may not start until fully loaded.

3. Verification Workflow

To confirm a successful mux, verify the internal atom structure:

  • mediainfo Check: Ensure Menu #1 and Menu #2 appear in the summary. Text track must be linked via tref (track reference) atom. For instance, as shown below, Track ID 3’s Menu#1 is for Track ID 1,2.

    • Command Reference:

      mediainfo OUTPUT.mp4

    • Expected Output Sample:

      Video #1
ID                                       : 1
Format                                   : HEVC
Format/Info                              : High Efficiency Video Coding
Format profile                           : Main@L4@Main
Codec ID                                 : hvc1
Codec ID/Info                            : High Efficiency Video Coding
Duration                                 : 5 min 0 s
Source duration                          : 5 min 0 s
Maximum bit rate                         : 2 646 kb/s
Width                                    : 1 920 pixels
Height                                   : 1 080 pixels
Display aspect ratio                     : 16:9
Frame rate mode                          : Constant
Frame rate                               : 29.970 (30000/1001) FPS
Color space                              : YUV
Chroma subsampling                       : 4:2:0 (Type 0)
Bit depth                                : 8 bits
Scan type                                : Progressive
Source stream size                       : 88.4 MiB (86%)
Writing library                          : x265 4.1+1-1d117be:[Mac OS X][clang 17.0.0][64 bit] 8bit+10bit+12bit
Encoding settings                        : cpuid=98 / ... /no-frame-rc
Language                                 : English
Tagged date                              : 2025-12-22 10:17:14 UTC
Color range                              : Limited
Color primaries                          : BT.709
Transfer characteristics                 : BT.709
Matrix coefficients                      : BT.709
Menus                                    : 3,4
mdhd_Duration                            : 300133
Codec configuration box                  : hvcC

Video #2
ID                                       : 4
Format                                   : JPEG
Codec ID                                 : jpeg
Duration                                 : 5 min 0 s
Duration_FirstFrame                      : 966 ms
Bit rate mode                            : Variable
Bit rate                                 : 2 040 b/s
Width                                    : 640 pixels
Height                                   : 360 pixels
Display aspect ratio                     : 16:9
Frame rate mode                          : Constant
Frame rate                               : 0.007 FPS
Color space                              : YUV
Chroma subsampling                       : 4:2:0
Bit depth                                : 8 bits
Compression mode                         : Lossy
Bits/(Pixel*Frame)                       : 1.265
Stream size                              : 71.2 KiB (0%)
Language                                 : English
Default                                  : No
Encoded date                             : 2025-12-22 09:54:15 UTC
Tagged date                              : 2025-12-22 10:17:14 UTC
For                                     : 1
ColorSpace_ICC                           : RGB
colour_primaries_ICC_Description         : Generic RGB Profile

Audio
ID                                       : 2
Format                                   : AC-3
Format/Info                              : Audio Coding 3
Commercial name                          : Dolby Digital
Codec ID                                 : ac-3
Duration                                 : 5 min 0 s
Bit rate mode                            : Constant
Bit rate                                 : 384 kb/s
Channel(s)                               : 6 channels
Channel layout                           : L R C LFE Ls Rs
Sampling rate                            : 48.0 kHz
Frame rate                               : 31.250 FPS (1536 SPF)
Compression mode                         : Lossy
Stream size                              : 13.7 MiB (13%)
Language                                 : English
Service kind                             : Complete Main / Complete Main
Default                                  : Yes
Alternate group                          : 1
Tagged date                              : 2025-12-22 10:17:14 UTC
Menus                                    : 3
Dialog Normalization                     : -31 dB
compr                                    : -0.28 dB
cmixlev                                  : -3.0 dB
surmixlev                                : -3 dB
dialnorm_Average                         : -31 dB
dialnorm_Minimum                         : -31 dB
dialnorm_Maximum                         : -31 dB

Menu #1
ID                                       : 3
Format                                   : Timed Text
Codec ID                                 : text
Duration                                 : 5 min 0 s
Title                                    : Chapters
Language                                 : English
Tagged date                              : 2025-12-22 10:17:14 UTC
Menu For                                 : 1,2
Duration_FirstFrame                      : 966
00:00:00.000                             : 01. ハジメテノオト (Hajimete no Oto)
00:02:30.483                             : 02. Project DIVA desu.

Menu #2
00:00:00.000                             : 01. ハジメテノオト (Hajimete no Oto)
00:02:30.483                             : 02. Project DIVA desu.

      Note: The chapter text track should be ID 3 and the chapter thumbnail track should be ID 4.

  • mp4box Check: Ensure the chapter track is listed.

    • Command Reference:

      mp4box -info OUTPUT.mp4

    • Expected Output Sample:

      # Track 1 Info - ID 1 - TimeScale 30000
Media Duration 01:58:23.396  (recomputed 01:58:23.429)
Track has 1 edits: track duration is 01:58:23.397
Track flags: Enabled In Movie
Media Language: English (en)
Media Samples: 212889 - CFR 29.970030/sec
Visual Track layout: x=0 y=0 width=1920 height=1080
Media Type: vide:hvc1
  Visual Sample Entry Info: width=1920 height=1080 (depth=24 bits)
  HEVC Video - Visual Size 1920 x 1080
  HEVC Info: Profile Main @ Level 4 - Chroma Format YUV 4:2:0

  NAL Unit length bits: 32 - general profile compatibility 0x60000000

  Parameter Sets: 1 VPS 1 SPS 1 PPS
  SPS resolution 1920x1080 - Pixel Aspect Ratio 1:1 - Indicated track size 1920 x 1080
  Bit Depth luma 8 - Chroma 8 - 1 temporal layers
  VPS#1 hash: 404DE42FD661F021A6D65558D6262919A28BB2DC
  SPS#1 hash: C84BDEDD5842CA8F651116584B60EDD80CF32A8A
  PPS#1 hash: 476CC254A14C7C38F1EC443B8C1E3E48B9736FDF

  RFC6381 Codec Parameters: hvc1.1.6.L120.90
  Average GOP length: 90 samples
  Max sample duration: 1001 / 30000

# Track 2 Info - ID 2 - TimeScale 48000
Media Duration 01:58:19.488
Track has 1 edits: track duration is 01:58:19.488
Track flags: Enabled In Movie
Media Language: Japanese (jpn)
Media Samples: 221859
1 UDTA types:
  tagc: public.main-program-content
Alternate Group ID 1
Media Type: soun:ac-3
  AC-3 stream - Sample Rate 48000 - 5.1 channel(s) - bitrate 384000
  RFC6381 Codec Parameters: ac-3
  All samples are sync
  Max sample duration: 1537 / 48000

# Track 3 Info - ID 3 - TimeScale 1000000
Media Duration 01:55:33.430
Track has 1 edits: track duration is 01:55:33.430
Track flags: Enabled In Movie
Media Language: Multiple languages (mul)
Media Samples: 1613
2 UDTA types:
  name: 日中双语 (JP/CN)
  tagc: public.main-program-content
Alternate Group ID 2
Media Type: sbtl:tx3g
  QT/3GPP subtitle
  Size 0 x 0 - Translation X=0 Y=0 - Layer 0
  RFC6381 Codec Parameters: tx3g
  All samples are sync
  Max sample duration: 56850000 / 1000000

# Track 4 Info - ID 4 - TimeScale 1000
Media Duration 01:58:23.396
Track has 1 edits: track duration is 01:58:23.396
Track flags: Disabled In Movie
Media Language: English (en)
Chapter Labels
Media Samples: 45
Media Type: text:text
  QT/3GPP text
  Size 0 x 0 - Translation X=0 Y=0 - Layer 0
  RFC6381 Codec Parameters: text
  All samples are sync
  Max sample duration: 288621 / 1000

# Track 5 Info - ID 5 - TimeScale 1000
Media Duration 01:58:23.396
Track has 1 edits: track duration is 01:58:23.396
Track flags: Disabled In Movie
Media Language: Japanese (ja)
Chapter Thumbnails
Media Samples: 45
Visual Track layout: x=0 y=0 width=640 height=360
Media Type: vide:jpeg
  Visual Sample Entry Info: width=640 height=360 (depth=24 bits)
  JPEG Image - Resolution 640 x 360
  RFC6381 Codec Parameters: mp4v.6C
  All samples are sync
  Max sample duration: 288621 / 1000

      Note: The chapter text track should be Track 4 and the chapter thumbnail track should be Track 5.

  • ffprobe Check: Ensure chapter metadata is present as one text track and another video track (thumbnails).

    • Command Reference:

      ffprobe -v error -show_entries stream=index,codec_type:stream_tags=handler_name -of default=noprint_wrappers=1 'OUTPUT.mp4'

    • Expected Output Sample:

      index=0
codec_type=video
TAG:handler_name=VideoHandler
index=1
codec_type=audio
TAG:handler_name=SoundHandler
index=2
codec_type=subtitle
TAG:handler_name=JP/CN Dual Subtitles
index=3
codec_type=data
TAG:handler_name=SubtitleHandler
index=4
codec_type=video
index=5
codec_type=video

      Note: The subtitle track should be index 3 (text) and index 4 (thumbnail). And index 5 should be the video cover track.

4. Conclusion

By following the outlined encapsulation procedures, video files can be effectively prepared for optimal playback on Apple devices, ensuring that subtitles can be seamlessly integrated and functional within the iOS and macOS environments.

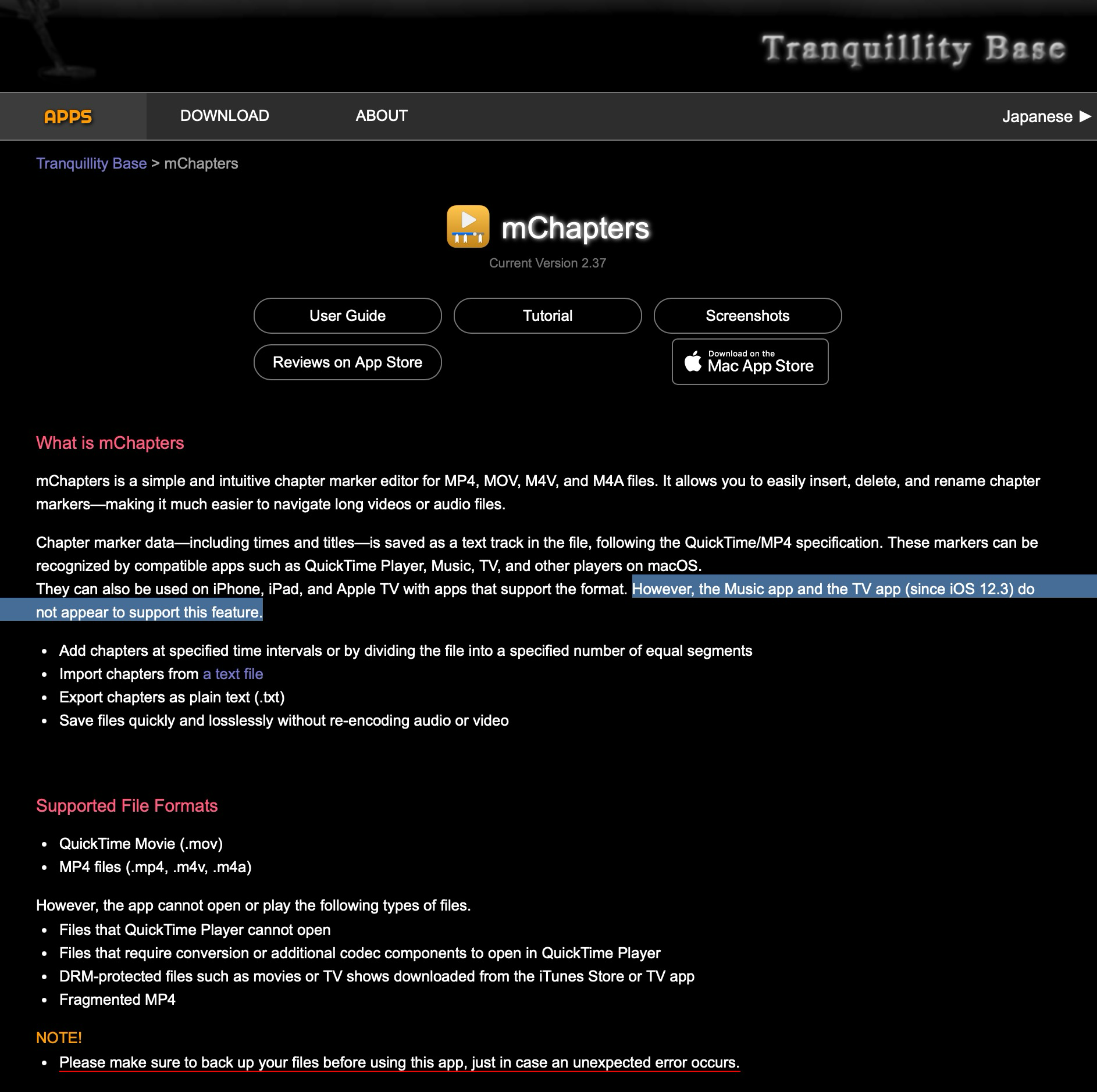

While the QuickTime-compatible chapter track is properly recognized on macOS, it is not displayed in the native iOS player. However, it may be visible when using third-party players like Infuse. This is likely due to Apple’s restrictions on third-party chapter markers since iOS 12.3, as noted by the developer of mChapters.

mChapter_developer_info

More Backgrounds About tref and MP4 Atoms

An atom (also known as a box) is the fundamental building block of the MP4 (MPEG-4 Part 14) and QuickTime (MOV) container formats.

Every atom consists of two main parts:

  • Size: A 4-byte integer defining the total length of the atom.
  • Type (FourCC): A 4-character code (like moov, trak, or mdat) that identifies what the atom does.

Primary Atoms in MP4:

  • ftyp (File Type): The very first atom. It identifies the “Brand” (like isom or mp42) so the iPad knows which standards the file follows.

  • mdat (Media Data): The largest atom. This contains the actual encoded “meat” of the file—your H.265 video frames and AC-3 audio samples.

  • moov (Movie Resource): The “Table of Contents.” It contains all the metadata, timing information, and pointers to the data inside the mdat. Note: Using -movflags +faststart moves this atom to the beginning of the file so your iPad can start playing before the full 17GB is downloaded.

Atoms Relevant to the Chapter Problem:

  • trak (Track): Each video, audio, and subtitle stream has its own trak atom.

  • udta (User Data): This is where FFmpeg writes your metadata.txt chapter info by default. iOS 19+ often ignores this for navigation.

  • tref (Track Reference): It is a sub-atom inside the Video Track (trak) that must explicitly “point” to the Chapter Track.

References

comments powered by Disqus
